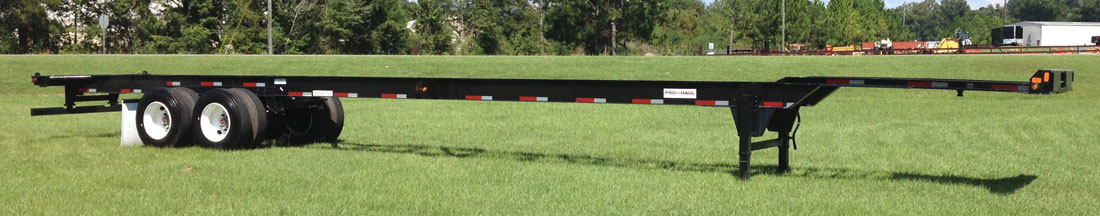

53ft Tandem Axle Intermodal Chassis

53’ PRO-HAUL TANDEM INTERMODAL CHASSIS

FEATURES

  • Gooseneck frame
  • All LED Lights
  • Hutch 9700 series three leaf spring suspension, 22,400 LB GAWR*
  • 5” Round 25,000 LB axle with oil bath hubs
  • Two speed 50,000 LB lift capacity landing gear, 10 x 10 sand shoes
  • 10 Hole Hub piloted wheels with 11R22.5 Tubeless Radial Tires
  • 16 1/2 x 7 quick change brakes, Haldex ABS brake system*
  • 30/30 brake chambers
  • GVWR 65,000 LB
  • 36” Kingpin Setting
  • Grade 50, 12” x 16 LB/ft. I-BEAM consturction
  • Tare Weight approximately 7,700 LB
  • 15 position adjustable slider

PRODUCT

  • Feature: New Chassis designed for the 21st century
  • Designed for repeated use in transportation of intermodal cargo containers
  • Meets DOT, AAR, ANSI, TOFC, FMVSS, ISO, SAE and TTMA requirements to operate in effect at the time of manufacture in USA
  • Maximum Gross Weight: 65,000 LB
  • VIN Plate for Chassis: Standard US VIN Plate
  • Tare Weight: 7,700 LB

GEOMETRY

  • Overall Length & Type: 53’10” Gooseneck Frame
  • Frame Bogie Type: With Sliding Tandem Bogie (2-Axle) 25,000 LB Axles
  • Overall Frame Width: 96” over Bolster
  • Main Frame Width: 40”
  • Rear Height: Approximately 48” from ground to the top of the rear bolster in unladen condition
  • King Pin Location: 36” from the rear face of the front bolster
  • Landing Gear Location: 130” from the rear of the front bolster

TIRES & WHEELS

  • Tires: Factory Furnished
  • Tire Manufacturer: Atlas*
  • Tire Size: 11R22.5
  • Wheels: Factory Furnished
  • Wheel Material: 8 Steel Wheel
  • Wheel Manufacturer: Butler*
  • Wheel Size: 8.25 x 22.5
  • Wheel Color: White • Valve Stem & Metal Dome Cap

UPPER COUPLER

  • Pick-Up Plate: 1/4” thick pick-up plate with 2” diameter drain holes
  • King Pin Trans-Support: 5/16” thick fabricated channel king pin Trans-support
  • King Pin: Standard (Buyers Product) King Pin*

LANDING GEAR

  • L/Gear Shoes: 10” X 10” Sand Shoe Low Profile
  • L/Gear Ground Clearance: Approximately 12” Ground Clearance
  • Landing Gear: Butler 50,000LB lift/180,000LB Static with 2 Speed Gearbox*
  • Crank Handle: Located at Driver’s Side

FRAME

  • Main Beam: 12” Deep x 16 LB/ft main beam, A572GR50
  • G/N Beam & Height: 4” deep fabricated H-beam accomodating 3-1/8” Container tunnel
  • G/N or FWD Beam Spec: 5/8” thick x 4” wide top and bottom flanges and 1/2” thick web, A572GR50
  • Cross Member: Fabricated channel cross member with triangle gusset, A572GR50
  • Cross Member Thickness: 3/16”
  • L/G Support Bracket: 3/16” thick channel type bracket with 4” channel brace
  • Front Gusset Spec: Front Gusset, 1/4” Triagular
  • Rear Gusset Spec: Rear Gusset with bending rib, 3/16” thick Triangular
  • Front Bolster Spec: 8” wide x 10” open section. Tapered bolster to provide guiding.
  • Front Bolster Material: 3/16” thick (A572GR50)
  • Front Bolster Locking Device: Locking Pin Type
  • Front Locking Spec: Locking Buffers 1103-1175 or Toca 900-905-00* • Rear Bolster Spec: 8” wide x 7” deep, 1/4” U Shape
  • Rear Bolster Channel Material: 1/4” (A572GR50)
  • RR Bolster Top Plate Material: 3/8” (A572GR50)
  • RR Bolster Locking Device: Non-retractable twistlocks, Butler 1101-1206*
  • License Plate Bracket Install: Standard Install Location
  • Mudflaps: 24” x 36” white factory furnished mudfl aps mounted to sliding bogie
  • Horizontal Member: 4” Square tube with horizontal step guard
  • Bumper Spec: 96” width under ride protection

RUNNING/SUSP

  • Axle Spacing: 49” Axle Spacing
  • Axle ABS System: Tandem Axle with 2S1M ABS System
  • Bogie & Axle Location: Tandem Location slides 61”-145” from the rear face of rear bolster (measured from center of equalizer to rear face of rear bolster)
  • 15 Position Slider
  • Susp. Spec: L Hutchens H-9700*
  • Spring Spec: 3 Leaf - High Arch 354-00
  • Axle Supplier: Butler*
  • Axle-General Spec: Axle - Tandem (2) Axle with 2S1M or 2S2M System
  • Axle-Track Length: 71-1/2”
  • Axle-Wall Thickness: 5/8”
  • Axle Spindle: Tapered Spindle
  • Brake Lining: 16.5” x 7” Rockwell Q Type shoes*
  • Brake Control System: 2S/1M Haldex ABS*
  • Air Tank: (2) 9.5x27 air tanks
  • Air Line: Black Gates Nylon DOT Tubing
  • Air Hose: Standard Hose Application
  • Slack Adjuster: Meritor Style Auto - 5.5”, 28 Spline*
  • Brake Chamber: TGI 30/30 Standard Stroke*
  • Brake Chamber Stroke Length: Standard Stroke Length
  • 10 Stud Hub Piloted Outboard Iron Hub with 16-1/2” x 7” cast steel brake drum
  • Bearing Specification: Set 413 HM212011 & HM212049 Cone/Cup NTN Brand*
  • Set 414 HM218210 & HM218248 Cone/Cup NTN Brand*
  • Lubrication Spec: Shell Spirax 80w-90*
  • Wheel Seals: Stemco*
  • Hubcap: Stemco metal 340-4009 oil type hubcap*
  • Gladhand Location: Located at Center of Front Bolster (HT G/N STD)*

ELEC/AIR

  • • Harness-Chassis: Molded Truck Lite 88 Series Harness With Junction Box*
  • 7-Way Connector Pollack 7-Way without Circuit Breakers
  • Front Marker Lights: Trucklite 10275Y LED Rivet Mounted*
  • Mid-Marker Lights: Trucklite 3050A LED Rivet Mounted/Trucklite 6050A MidTurn With TL 99152 WIDE TURN LENS*
  • Rear Side Marker Lights: Trucklite 3050 LED Rivet Mounting*
  • Rear Lights: (3) Trucklite 3050 LED Rivet Mounting*
  • Rear Stop/Turn/Tail Lights: Trucklite 4050 LED Rivet Mounting*
  • ABS Light: Trucklite 30200Y with 10728 Lamp Mounting Bracket & ABS Decal*
  • License Light: Trucklite 15040 LED*
  • Registration Holder: (1) Trucklite 97960*
  • Decals Standard: Factory Furnished
  • Conspicuity Markings: Conspicuity Stripe per Federal Regulation

PAINT

  • Metal Preparation: Commercial Shot Blast
  • Primer: Zinc Phosphate Epoxy
  • Top Coat: Plural Component Acrylic Urethane
  • Paint Color: Black, unless otherwise requested

*or equivalent
