20ft Tri Axle Intermodal Chassis

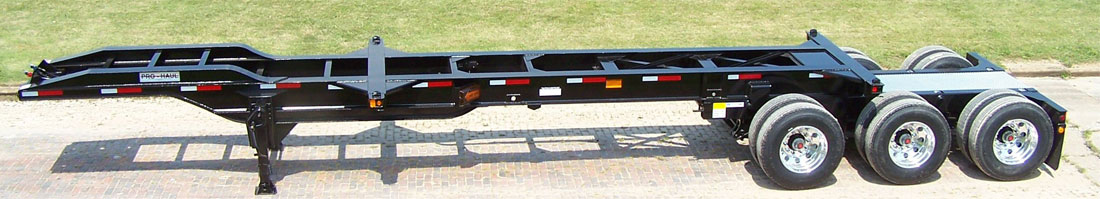

20’ PRO-HAUL TRI AXLE INTERMODAL CHASSIS

FEATURES

  • All LED Lights
  • Grade 50, 14” I-BEAM construction with frame ribs for increased strength
  • GVWR 65,000 LB
  • 18” Kingpin Setting
  • Hutch 9700 series three leaf spring suspension, 24,000 LB GAWR*
  • 5” Round 25,000 LB axle with oil bath hubs
  • Two speed 50,000 LB lift capacity landing gear, 10 x 10 sand shoes
  • 10 Hole Hub piloted wheels with 11R22.5 Tubeless Radial Tires
  • 16-1/2 x 7 quick change brakes, Haldex ABS brake system*
  • 30/30 brake chambers
  • Cable carrier system for air hose and electric harness protection
  • Tri-Axle Slider on roller bearings
  • Bearings integrated in slider for easy repositioning of axles to reduce equipment damage
  • Tare weight approx. 10,750 LB

PRODUCT

  • Feature: New Chassis designed for the 21st century
  • Designed for repeated use in transportation of intermodal cargo containers
  • Meets DOT, AAR, ANSI, TOFC, FMVSS, ISO, SAE and TTMA requirements in effect at the time of manufacture in USA
  • Maximum Gross Weight: 65,000 LB • VIN Plate for Chassis: Standard US VIN Plate
  • Tare Weight: 10,750 LB

GEOMETRY

  • Overall Length & Type: 33’5” Closed Position, 41’5” Extended Postion
  • Frame Bogie Type: With Sliding Triaxle Bogie (3-Axle) 25,000 LB Axles
  • Overall Frame Width: 96” over Bolster
  • Main Frame Width: 43”
  • Rear Height: Approxiamtely 52” from ground to the top of the rear bolster in unladen condition
  • King Pin Location: 20” from front of chassis
  • Landing Gear Location: 110” from front of chassis

TIRES & WHEELS

  • Tires: Factory Furnished
  • Tire Manufacturer: Atlas Tire*
  • Tire Size: 11R 22.5
  • Wheels: Factory Furnished
  • Wheel Material: 12 Steel Wheels
  • Wheel Manufacturer: Butler*
  • Wheel Size: 8.25 x 22.5
  • Wheel Color: White
  • Valve Stem & Metal Dome Cap

UPPER COUPLER

  • Pick-Up Plate: 5/16” thick pick-up plate with 2” dia. Drain holes
  • King Pin Trans-Support: 5/16” (6.4mm) thick fabricated channel king pin Trans-support
  • King Pin: Standard (Buyers Product) King Pin*

LANDING GEAR

  • L/GEAR Shoes: 10” X 10” Sand Shoe Low Profile
  • L/Gear Ground Clearance: Approximately 12” Ground Clearance
  • Landing Gear: Butler 50,000LB lift/180,000LB Static with 2 Speed Gearbox*
  • Crank Handle: Located at Driver’s Side

FRAME

  • Main Beam: 14” Deep x 34 LB/ft main beam, A572GR50
  • G/N or FWD Beam Spec: Neck 12” total beam height 3/8”x6” flanges A572 GR50
  • Cross Member: Fabricated channel cross member with triangle gusset, A572GR50
  • Cross Member Thickness: 3/16” with (2) 3” C-Channel X braces above sliding Triaxle bogie
  • L/G Support Bracket: 1/4” channel type bracket with 4” channel brace
  • Front Gusset Spec: 3/16” with bending rib located on fore and aft of bolster
  • Rear Gusset Spec: 3/16” with bending rib
  • Front Bolster Spec: 8” wide x 7-3/8” deep
  • Front Bolster Material: Channel 1/4”,Top Plate 3/8” (A572GR50)
  • Front Bolster Locking Device: Twistlock Type
  • Front Locking Spec: Non-retractable twistlocks, Butler 1101-1206*
  • Rear Bolster Spec: 8” wide x 7-3/8” deep
  • Rear Bolster Channel Material: 1/4” (A572GR50)
  • Rear Bolster Top Plate Material: 3/8” (A572GR50)
  • Rear Bolster Locking Device: Non-retractable twistlocks, Butler 1101-1206*
  • License Plate Bracket Install: Standard Install Location
  • Mudfl aps: 24” x 30” white factory furnished mudfl aps mounted on vertical steel fl ange with horizontal member
  • Rear Under Ride Bumper: Weld on Vertical steel flange with horizontal member
  • Horizontal Member: 4” C-channel horizontal step guard
  • Extendable Triaxle Bogie: 6”x10” x 3/8” Wall Rectangle Tube. (A500-CGR50) Fitted with roller bearings to aid in extending.
  • Extendable Frame Cross members: 3/16” A572GR50 Cross members with 1/4”x2” Flatbar X braces above all axles

RUNNING/SUSP

  • Axle Spacing: 53-5” Axle Spacing
  • Axle ABS System: Triaxle Axle with 2S1M ABS System
  • Bogie & Axle Location: Equalizers located at 56.5” and 110” from rear of sliding Triaxle bogie
  • Susp. Spec: Hutchens Undermount Hanger, H-9700*
  • Spring Spec: 3 Leaf - 365-00 Heavy Duty Spring
  • Axle Supplier: Butler*
  • Axle-General Spec: Axle - Triaxle (3) Axle with 2S1M • Axle-Track Length: 77-1/2”
  • Axle-Wall Thickness: 5/8”
  • Axle Spindle: Tapered Spindle
  • Brake Lining: 16.5” x 7” Rockwell Q Type shoes 20’
  • Brake Control System: 2S/1M Haldex ABS*
  • Air Tank: (3) 9.5x27 air tanks
  • Air Line: Black Gates Nylon DOT Tubing • Air Hose: Standard Hose Application
  • Slack Adjuster: Meritor Style Auto - 5.5”, 28 Spline*
  • Brake Chamber: TGI 30/30 Standard Stroke
  • Brake Chamber Stroke Length: Standard Stroke Length
  • Brake Chamber Other Spec: Manufacturer’s Standard Components
  • 10 Stud Hub Piloted Outboard Iron Hub with 16-1/2” x 7” cast steel brake drum
  • Bearing Specification: Set 413 HM212011 & HM212049 Cone/Cup Set 414 HM218210 & HM218248 Cone/Cup
  • Lubrication Spec: Shell Spirax 80w-90*
  • Wheel Seals: Stemco*
  • Hubcap: Stemco metal 340-4009 oil type hub cap*
  • Gladhands: Velvac Gladhands, Service 035042 & Emergency 035045*
  • Gladhand Location: Located on mount plate at front of chassis

ELEC/AIR

  • Harness-Chassis: Molded Truck Lite 88 Series Harness*
  • 7-Way Connector Pollack 7-Way without Circuit Breakers
  • Front Marker Lights: Trucklite 3050A LED Rivet or Grommet mounted, depending on inventory*
  • Mid-Marker Lights: Trucklite 3050A LED Rivet or Grommet mounted, depending on inventory/Trucklite 6050A MidTurn With TL 99152 WIDE TURN LENS*
  • Rear Side Marker Lights: Trucklite 3050 LED Rivet or Grommet mounted, depending on inventory*
  • Rear Lights: (3) Trucklite 3050 LED Rivet Mounting Rear Stop/Turn/Tail Lights: Trucklite 4050 LED Rivet or Grommet mounted, depending on inventory*
  • ABS Light: Trucklite 30200Y with 10728 Lamp Mounting Bracket & ABS Decal*
  • Hose Protection: Air Line and Electrical Harness enclosed in Igus Hose Carrier system to prevent damage from extending chassis
  • License Light: Trucklite 15040 LED*
  • Registration Holder: (1) Trucklite 97960*
  • Decals Standard: Factory Furnished
  • Conspicuity Markings: Conspicuity Stripe per Federal Regulation

PAINT

  • Metal Preparation: Commercial Shot Blast
  • Primer: Zinc Phosphate Epoxy
  • Top Coat: Plural Component Acrylic Urethane
  • Paint Color: Black, unless otherwise requested

*or equivalent
